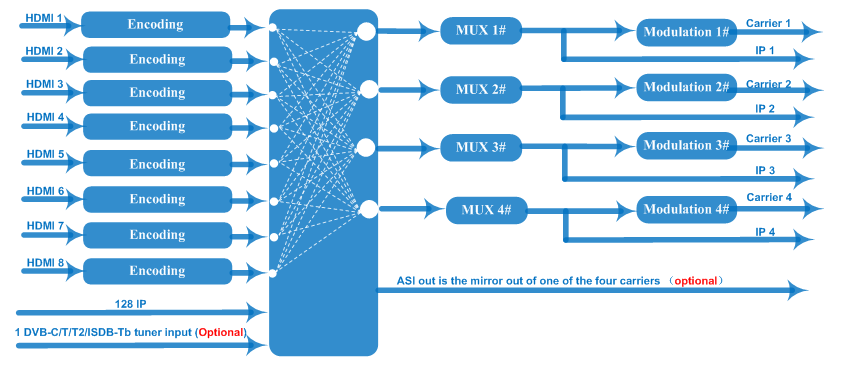

Input

8 HDMI inputs;

128 IP inputs;

1 DVB-C/T/(T)/ISDB-Tb tuner input for re-mux (Optional for DVB-C RF out version)

Video

Encoding

HEVC/H.265, MPEG-4 AVC/H.264

Resolution

In-put

1920×1080_60P, 1920×1080_60i,

1920×1080_50P, 1920×1080_50i,

1280×720_60P, 1280×720_50P,

720×576_50i,720×480_60i,

Out-put

1920×1080_30P, 1920×1080_25P,

1280×720_30P, 1280×720_25P,

720×576_25P,720×480_30P,

Bit-rate

1Mbps~13Mbps each channel

Rate Control

CBR/VBR

GOP Structure

IP…P (P Frame adjustment)

Audio

Encoding

MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass Through

Sampling rate

48KHz

Resolution

24-bit

Audio Gain

0-255 Adjustable

MPEG-1 Layer 2 bit-rate

48/56/64/80/96/112/128/160/192/224/256/320/384 kbps

LC-AAC bit-rate

48/56/64/80/96/112/128/160/192/224/256/320/384 kbps

HE-AAC bit-rate

48/56/64/80/96/112/128 kbps

Multiplexing

Maximum PID

Remapping

180 input per channel

Function

PID remapping (automatically or manually)

Generate PSI/SI table automatically

Scrambling

(optional for  DVB-C RF out version)

Maximum simulcrypt CA

6

Standard

ETR289, ETSI 101 197, ETSI 103 197

Connection

Local/remote connection

Modulation

DVB-C

RF out

4*RF DVB-C out (4 carriers combined output), F type interface

Standard

EN300 429/ITU-T J.83A/B

MER

≥40db

RF frequency

50~960MHz, 1KHz step

RF output level

-25~-1dBm (82~105 dbµV), 0.1dBm

Symbol Rate

5.0Msps~7.0Msps, 1ksps stepping

J.83A

J.83B

Constellation

16/32/64/128/256QAM

64/256 QAM

Bandwidth

8M

6M

DVB-T

RF out

4*RF COFDM DVB-T out (4 carriers combined output) ,F type interface

Standard

EN300744

FFT mode

2K,

Bandwidth

6M, 7M, 8M

Constellation

QPSK, 16QAM, 64QAM

Guard Interval

1/4, 1/8, 1/16, 1/32

FEC

1/2, 2/3, 3/4, 5/6, 7/8

MER

≥42 dB

RF frequency

50~960MHz, 1KHz step

RF output level

-28~ -3 dBm (77~97 dbµV), 0.1db step

ATSC

RF out

4*RF ATSC out (4 carriers combined output) ,F type interface

Standard

ATSC A/53

Bandwidth

6M

Constellation

8VSB

FEC

RS(208 188)+Trellis

MER

≥40dB

ACL

-55 dBc

RF frequency

50~960MHz, 1KHz step

RF output level

-20~+3dbm (for all carriers), 0.5db stepping

Stream output

4 IP MPTS output over UDP/RTP/RTSP, 1*1000M Base-T Ethernet interface

System function

Management: web-based NMS, one NMS port manage all input modules, LCD+Keyboard manage

Chinese and English language

Ethernet software upgrade

Miscellaneous

Dimension (W×L×H)

482mm×328mm×44mm

Environment

0~45℃(work)；-20~80℃（Storage）

Power requirements

AC 110V± 10%, 50/60Hz, AC 220 ±10%,50/60Hz

DVB-C Out

DVB-T Out

ATSC Out

1 DVB-C/T/(T)/ISDB-Tb tuner input for remux

Option as order

N/A

N/A

Scrambling function

Option as order

N/A

N/A
