Product Overview
NDS3242A is DEXIN’s new H.264/H.265 4K encoder equipped with 2 or 4 HDMI inputs and 1 ASI input for remux. The stream will output via ASI ports and Ethernet port over UDP, RTP/RTSP.
It adopts an inner drawer-type structural design which greatly facilitates the change of encoding modules as needed.
Key Features
* 2 or 4 HDMI inputs with H.265/h.264 video
* IP output over UDP, RTP/RTSP from the 100/1000M self-adaptive data port
* Support AC3 Pass-through
* Support OSD (logo/QR Code) insertion, logo in PPT form is available
* Support CC (Closed Caption) /Teletext (CC is not available for H.265 at present)
* LCN support (Logical Channel Number)
* LCD Screen for easy management

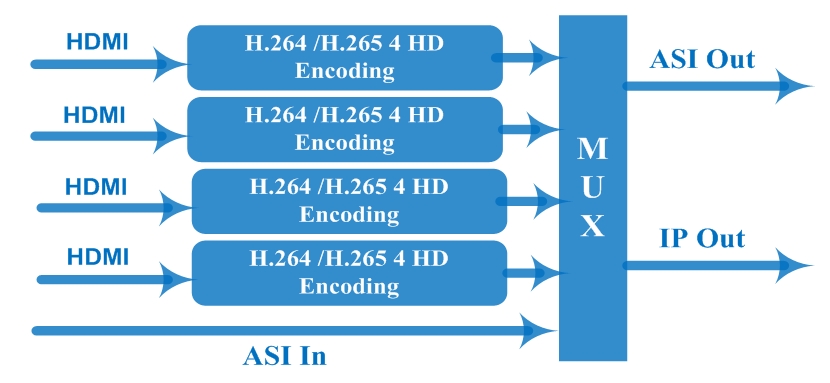

Working Principle
Specifications
|
Input |
2/4 HDMI in. 2/4 HDMI loop out 1 ASI in for re-mux |
||
|
Video |
Resolution |
3840*2160_60/50P (under H.265 only), 3840*2160_30P 1920*1080_60/59.94/50P, 1280*720_60/59.94/50P |
|
|
Encoding |
HEVC/H.265, MPEG 4 AVC/H.264 |
||
|
Bit-rate |
2Mbps~20Mbps (under HEVC/H.265) 4Mbps~20Mbps (under MPEG 4 AVC/H.264) |
||
|
Rate Control |
CBR/VBR |
||
|
Chroma |
Input:4:4:4/4:2:2; output:4:2:0 |
||
|
GOP Structure |
IBBP, IPPP |
||
|
Audio |
Encoding |
MPEG-1 Layer 2, LC/HE***, AC3 Pass through |
|
|
Bit-rate |
48Kbps~384Kbps (MPEG-1 Layer 2 /LC***) |
||
|
24 Kbps~128 Kbps (HE***) |
|||
|
18 Kbps~56 Kbps (HE*** V2) |
|||
|
Multiplexing |
Maximum PID Remapping |
256 input per channel |
|
|
Function |
PID remapping ( automatically or manually) |
||
|
Accurate PCR adjusting |
|||
|
Generate PSI/ SI table automatically |
|||
|
Stream output |
2 ASI mirror out (BNC type) 1 MPTS & 4 SPTS out over UDP, RTP/RTSP (100/1000M self-adapt) |
||
|
System function |
Network management(WEB) |
||
|
Chinese and English language |
|||
|
Ethernet software upgrade |
|||
|
Miscellaneous |
Dimension(W×L×H) |
482mm×328mm×44mm |
|
|
Environment |
0~45℃(work)；-20~80℃（Storage） |
||
|
Power requirements |
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
||
