Product Features
* Support dynamic frequency tuning (DFT), automatically adjusting the frequency in response to impedance changes
* Intelligent arc management with microsecond-level arc extinction response
* Strong load traction capability, maintaining output power even under intense reflection conditions
* Support phase synchronization (CEX), interlock protection, and reflection over-limit protection
* Supports overcurrent, overvoltage, and overtemperature protection for DC sources
Tech Parameters
|
Item |
Tech Parameters |
||
|
RYZE 1320 |
RYZE 1330 |
||
|
Output freq |
13.56MHz ±0.005% |
||
|
DFT range |
±5% (12.882MHz - 14.238MHz) |
||
|
RF Output connector |
7/16 DIN (Female) |
||
|
IO connector |
Analog (DB25 female connector) |
||
|
Communication connector |

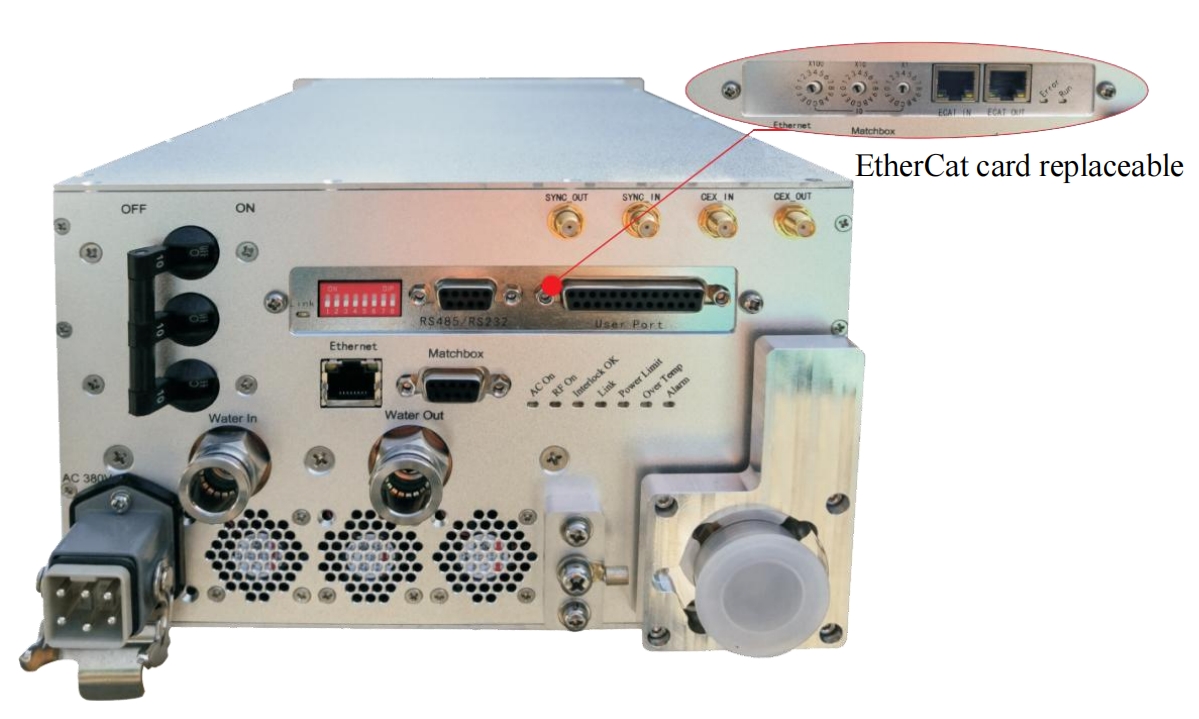

RS232/RS485 (DB9 Female), EtherCat |
||
|
Power Mode |
Forward power, Load power |
||
|
Output power |
10W-2000W |
10W-3000W |
|
|
Power repeatability |
1% |
||
|
Power Stability |
1% |
||
|
Power factor |
≥0.92 |
||
|
Maximum reflected power |
20% of the rated power |
||
|
Traction pull characteristic @ rated power |
1.5@100%, 2@75% (rated output) |
||
|
Harmonic |
≤-45dBc |
||
|
Stray |
≤-60dBc |
||
|
Duty Cycle |
1%-99% (minimum ON/OFF time: 5μs) |
||
|
Pulse frequency |
1Hz-100kHz |
||
|
Overall efficiency |
≥65%@50Ω |
||
|
Phase synchronization (CEX) |
Support as per order |
||
|
Protection function |
Overvoltage, overcurrent, and overheating protection; reflection power exceed limit protection; external lockout protection; and arc detection protection |
||
|
Cooling medium |
Force Air and water |
||
|
Mains |
AC 380V±10%, 50Hz/60Hz |
||
|
Weight |
12.5 kg |
||
|
Dimension DxWxH (mm) |
431*215*132 |
||
