Product Outline
NDS33XX-N Series support multi-protocol IP inputs over UDP/RTP/RTSP/HLS/HTTP/SRT. It is flexible to choose different modulator cards to support different modulation output, such as DVB-C, DVB-T, ATSC and ISDB-T. NDS33XX-N Series bring a new level of intelligence and high performance to the CATV system at a cost-effective price offer.
Key Features
* Support multi-protocol IP inputs over UDP/RTP/RTSP/HLS/HTTP/SRT
* SPTS input over UDP/RTP/RTSP/HLS/HTTP/SRT via the IPTV1 IN port in the front panel
* MPTS/SPTS input over UDP and RTP via the 2 DATA ports in the modulator board
* Support multi-type order options for modulator cards, DVB-C, DVB-T, ATSC and ISDB-T
* Support about 100Mbps-300Mbps data processing (IPTV1IN port in the front panel, up to the actual protocols etc) and max 840Mbps data processing(2 DATA ports in the modulator card)
* Support MPTS output over UDP/RTP via 2 DATA ports in the modulator card as mirror of carriers output
* IPTV1 IN port in the front panel is an unidirectional IP-input port; 2 DATA ports in the modulator card are the bidirectional IP-input/output ports.
* Support TS playing via USB Disk, USB 3.0
* Support the remote reboot in Web GUI
* Support Web management, Update via web

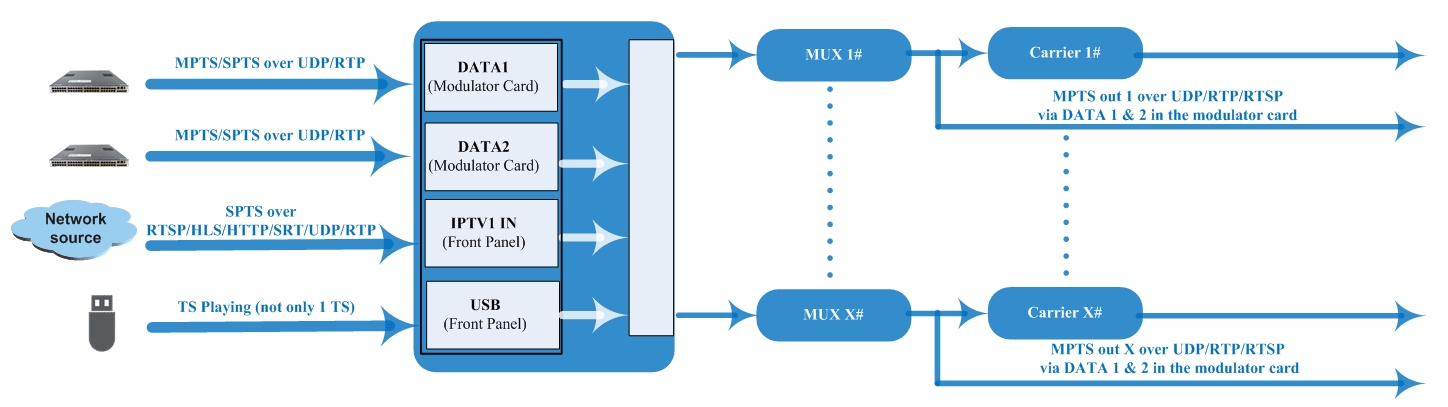

Principle Chart
Modulation Specifications:
Order option 1: NDS3316-N & NDS3332-N DVB-C Modulator
|
Data input: Max 512/1024 IP inputs over UDP/RTP via 2 DATA Ports (RJ45/SFP) in the modulator card and over UDP/RTP/RTSP/HLS/HTTP/SRT via IPTV1 IN port in the front panel, unicast/multicast Data output: 16 or 32 IP outputs over UDP/RTP/RTSP, unicast/multicast, 2 DATA Ports (RJ45/SFP) in the modulator card RF output (F type): 16/32 channels of multiplexing, scrambling and modulation Multiplexing: Maximum PID Remapping: 180/256 per channel Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/SI table automatically Scrambling: Maximum simulcrypt CA: 6 Standard: ETR289, ETSI 101 197, ETSI 103 197 Connection: Local/remote connection Modulation: Standard: EN300 429/ITU-T J.83A/B MER: ≥40dB RF frequency: 50~960MHz, 1KHz step RF output level: -20~+10dBm (87~117 dBµV), 0.1dB step for all carriers Symbol Rate: 3600~7200Ksps, 1ksps stepping 5057Ksps (J.83B, 64QAM), 5361Ksps (J.83B, 256QAM) Constellation/Bandwidth: J.83A: 16/32/64/128/256QAM, 8M J.83B: 64/256QAM, 6M J.83C: 64/256QAM, 8M NDS3316-N Output: 16 non-adjacent carrier outputs within 192M bandwidth NDS3332-N Output: 32 non-adjacent carrier outputs within 384M bandwidth |
Order option 2: NDS3332D-N & NDS3348D-N DVB-C Modulator
|
Data input: Max 1024/1536 IP inputs over UDP/RTP via 2 DATA Ports (RJ45/SFP) in the modulator card and over UDP/RTP/RTSP/HLS/HTTP/SRT via IPTV1 IN port in the front panel, unicast/multicast Data output: 32/48 IP output over UDP/RTP/RTSP, unicast/multicast, 2 DATA Ports (RJ45/SFP), DATA1 for IP #1-#16/24, DATA2 for IP #17/25-#32/48 in the modulator board Multiplexing: Maximum PID Remapping: 256/512 per channel Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/SI table automatically Scrambling: Maximum simulcrypt CA: 6 Standard: ETR289, ETSI 101 197, ETSI 103 197 Connection: Local/remote connection Modulation: Standard: EN300 429/ITU-T J.83A/B MER: ≥40dB RF frequency: 50~960MHz, 1KHz step RF output level: -20~+10dBm (87~117 dBµV), 0.1dB step for all carriers Symbol Rate: 3600~7200Ksps, 1ksps stepping 5057Ksps (J.83B, 64QAM), 5361Ksps (J.83B, 256QAM) Constellation/Bandwidth: J.83A: 16/32/64/128/256QAM, 8M J.83B: 64/256QAM, 6M
RF output: 2 F type output ports for 32/48 non-adjacent carriers, 75Ω
NDS3332D-N: Carrier 1~16 out thru RF1, 17~32 thru RF2, each RF supports 384M bandwidth |
Order option 3: NDS3308T-N DVB-T Modulator
|
Data input: Max 256/512 IP inputs over UDP/RTP via 2 DATA Ports (RJ45/SFP) in the modulator card and over UDP/RTP/RTSP/HLS/HTTP/SRT via IPTV1 IN port in the front panel, unicast/multicast Data output: 8/16 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP) in the modulator card Multiplexing: Channel Number: 8/16 multiplexing channels Maximum PID Remapping: 180/256 per channel Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically Modulation: Standard: ETSI EN300 744 MER: ≥40db RF Frequency: 50~960MHz, 1KHz step Constellation: QPSK/16QAM/64QAM Bandwidth: 6/7/8 MHz Trans mode: 2K/4K/8K FEC: 1/2, 2/3, 3/4, 5/6, 7/8 RF Output Level: -20~+10dbm (for all carriers), 0.1dB stepping RF Output (F type): 8/16 non-adjacent carrier outputs Order Guide: NDS3308T-N-8: 8 non-adjacent DVB-T carrier output within 192M bandwidth NDS3308T-N-16: 16 non-adjacent DVB-T carrier output within 384M bandwidth |
Order option 4: NDS3306I-N ISDB-T Modulator
|
Data input: Max 256/512 IP inputs over UDP/RTP via 2 GE Ports (RJ45/SFP) in the modulator card and over UDP/RTP/RTSP/HLS/HTTP/SRT via IPTV1 IN port in the front panel, unicast/multicast Data output: 8/16 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP) in the modulator card RF output (F type): 8/16 channels of multiplexing and modulation. Multiplexing: Maximum PID Remapping: 180/256 per channel Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically Modulation: Standard: ARIB STD-B31 Bandwidth: 6M Constellation: QPSK, 16QAM, 64QAM Guard Interval: 1/32, 1/16, 1/8, 1/4 Transmission Mode: 2K, 4K, 8K Code rate: 1/2, 2/3, 3/4, 5/6, 7/8 MER: ≥40dB RF frequency: 50~960MHz, 1KHz step RF output level: -20dBm~+10dBm (87~117dbµV), 0.1dB stepping RF Output: 8/16 non-adjacent carrier outputs Order Guide: NDS3306I-N-8: 8 non-adjacent ISDB-T carrier output within 192M bandwidth NDS3306I-N-16: 16 non-adjacent ISDB-T carrier output within 384M bandwidth |
Order option 5: NDS3308AT-N ATSC Modulator
|
Data input: Max 256 IP inputs over UDP/RTP via 2 DATA Ports (RJ45/SFP) in the modulator card and over UDP/RTP/RTSP/HLS/HTTP/SRT via IPTV1 IN port in the front panel, unicast/multicast Data output: 8 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP) in the modulator card Multiplexing: Channel Number: 8 multiplexing channels Maximum PID Remapping: 180 per channel Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically Modulation: Standard: ATSC A/53 MER: ≥40db RF Frequency: 50~960MHz, 1KHz step Constellation: 8VSB Bandwidth: 6MHz FEC: RS(208 188)+Trellis RF Output Level: -20~+10dbm (for all carriers), 0.1db stepping RF Output (F Type) : 8 non-adjacent carrier outputs within 192M bandwidth |
Equipment Specifications:
Dimension(W×L×H): 368mm×482mm×44mm
Environment: 0~45℃(work); -20~80℃(Storage）
Power requirements: AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
