Product Overview
NDS3304T IP DVB-(T) modulator is a Multiplexing-modulating all-in-one device developed by DEXIN. It has 4 multiplexing channels and 4 DVB-(T) modulating channels, and supports maximum 1024 IP inputs through 4 data ports and 4 non-adjacent carriers output through 2 RF output interfaces. The device is characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system.
Key Features
* 6 GE ports:
4*RJ45, 2*SFP, DATA1/2 and SFP1/2 for input, DATA 3/4 for output
* 4 DVB-(T) non-adjacent carriers output, fully complying with EN302 755
* Max 840Mbps and 1024 IP inputs for each GE input
* Supports multiplexing with accurate PCR adjusting, PID remapping and PSI/SI editing
* Supports up to 256 PID remapping per channel
* 2 IP (MPTS) output over UDP protocol
* Supports single PLP
* Support MISO and SISO
* Supports non-linear digital pre-distortion (DPD)
* Support PID bypass and pass-through
* Support Web-based Network management

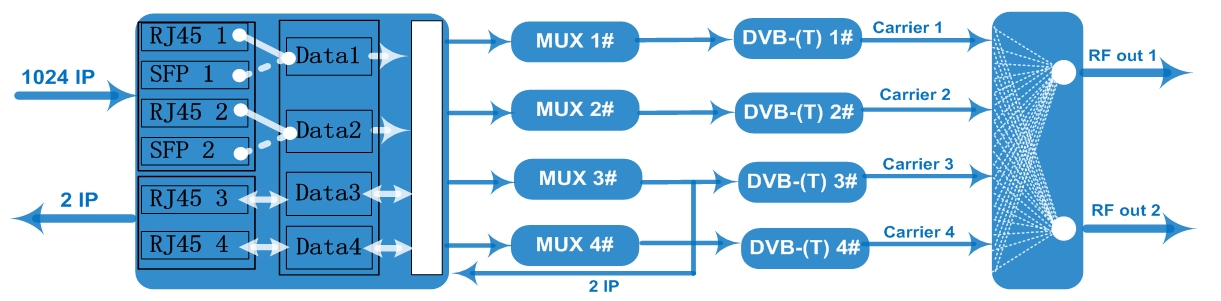

Inner Principle Chart
Specifications
|
Input |
Input |
Max 1024 IP input through data ports 1/2, 100/1000M Ethernet Ports (RJ45 1/2 and SFP interface 1/2 alternative) |
|
Transport Protocol |
TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
|
|
Transmission Rate |
Max 840Mbps for each input channel |
|
|
Mux |
Input Channel |
1024 IP streams |
|
Output Channel |
4 |
|
|
Max PIDs |
256 per channel |
|
|
Functions |
PID remapping(auto/manually optional) |
|
|
PCR accurate adjusting |
||
|
PSI/SI table automatically generating |
||
|
Modulation Parameters |
Output Channel |
4 non-adjacent carriers output |
|
Modulation Standard |
EN302 755 |
|
|
Mode |
Mode A: single-PLP; |
|
|
L1Post Constellations |
QPSK, 16QAM, 64QAM, 256QAM (Normal or Rotated) |
|
|
FEC Length |
Short(16K), Normal (64K) |
|
|
FEC Rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6 |
|
|
Bandwidth |
5/6/7/8 MHz |
|
|
Pilot Pattern |
PP1 - PP8 |
|
|
Guard Interval |
1/128, 1/32, 1/16, 19/256, 1/8, 19/128, 1/4 |
|
|
FFT Mode |
1k, 2k, 4k ,8k, 16k |
|
|
RF Output |
Interface |
2 F type port, 75Ω impedance |
|
RF Range |
50~960MHz, 1kHz stepping |
|
|
Output Level |
-15~+5 dBm, 0.1db stepping |
|
|
MER |
≥ 43dB |
|
|
Shoulder Level |
>56dB |
|
|
TS output |
2 IP output over UDP/RTP/RTSP, unicast/multicast, 100/1000M Ethernet Ports |
|
|
System |
Web-based Network management |
|
|
General |
Demission |
420mm×440mm×44.5mm (WxLxH) |
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|
|
Power Supply |
AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
|
