Product Overview
NDS3308T 8in1/16in1/24in1/28in1/32in1 DVB-T modulator is an all-in-one device developed by DEXIN. It supports maximum 256 (or 1024) IP input through the GE/SFP port and has 8 (or 16/20/24/28/32) multiplexing channels and 8 (or 16/20/24/28/32) DVB-T modulating channels of non-adjacent carriers (50MHz~960MHz). The device is characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system.
Key Features

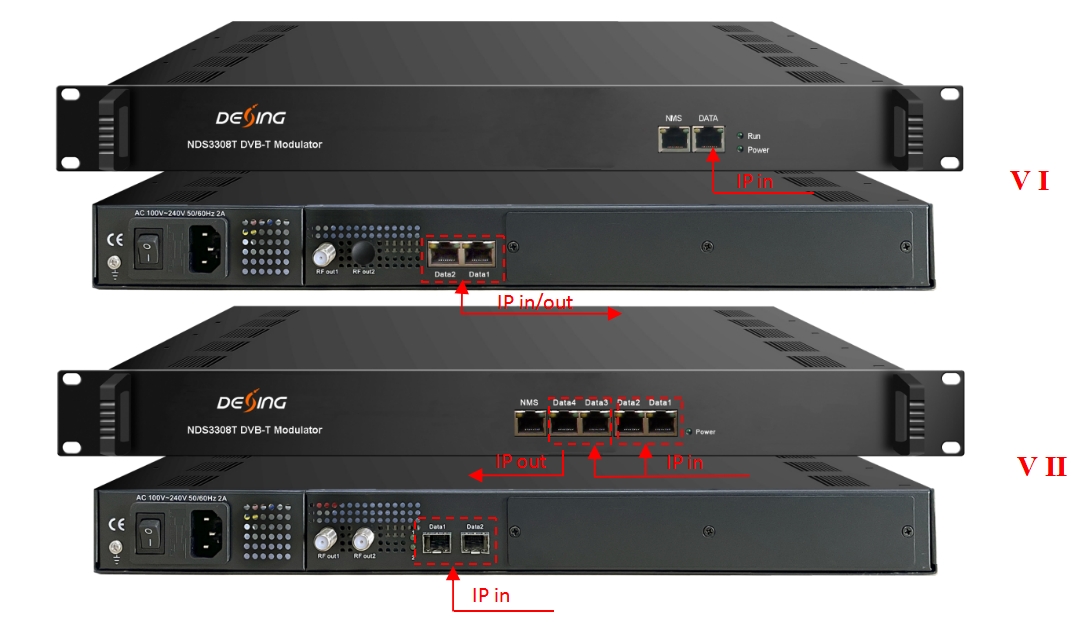

- 3 GE ports for IP input and output --Version I
6 GE ports (4*RJ45, 2*SFP), data1-4 for IP input (RJ45/SFP), data 3-4 for IP output --Version II
- Max 840Mbps for each input
- Support accurate PCR adjusting
- Support PID remapping and PSI/SI editing
- Support up to 256 PIDs remapping per channel
- Support 8 (or 16/20/24/28/32) multiplexed TS over UDP/RTP/RTSP output
- Support 8 (or 16/20/24/28/32) DVB-T non-adjacent carriers output, compliant to ETSI EN300 744 standard
- Supports RS (204,188) encoding
- Support Web-based Network management
Inner Principle Chart

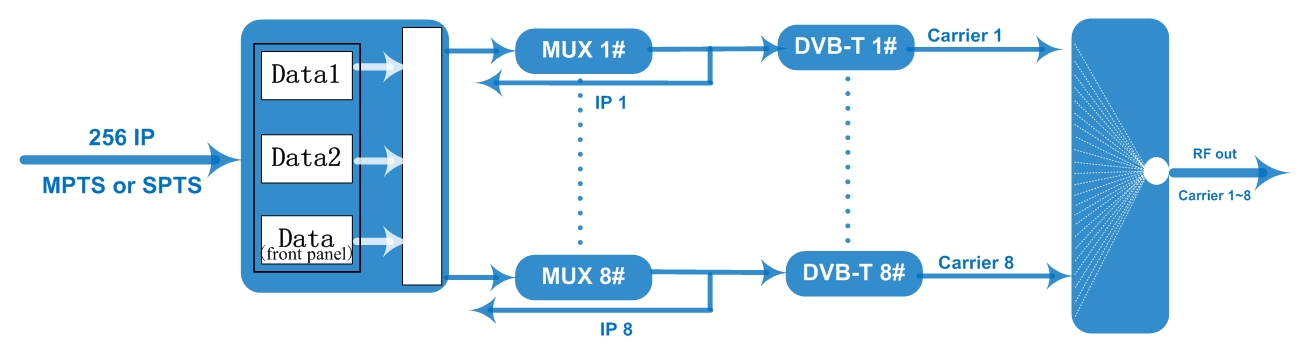

(Version I - For 8 carriers out:)

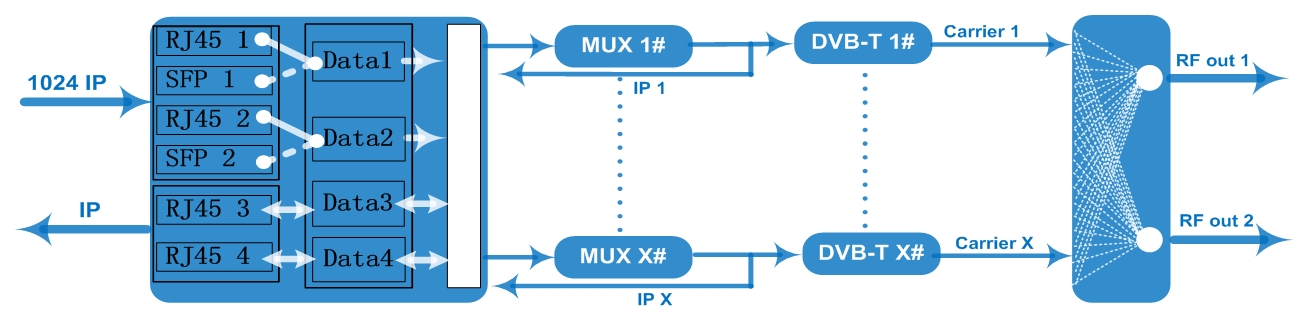

(Version II - For 16/20/24/28/32 carriers out:)

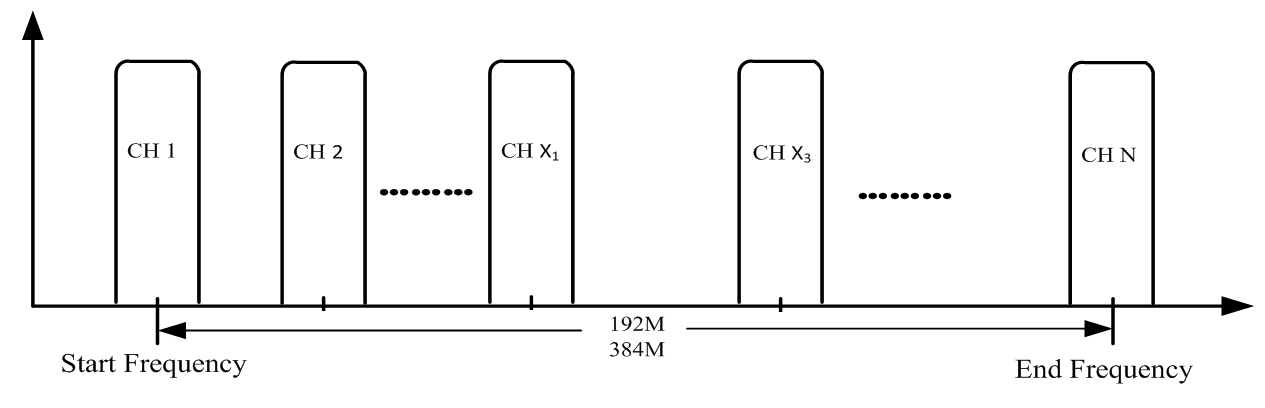

Carrier Setting Illustration
Specifications:
|
Input |
Input |
Max 256 IP input through 3 (front-panel Data port, Data 1 and Data 2) 100/1000M Ethernet Port (SFP interface optional). - For Version I Max 1024 IP input through data ports 1 to 4 100/1000M Ethernet Ports (RJ45 and SFP interface alternative). –For Version II |
|
Transport Protocol |
TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
|
|
Transmission Rate |
Max 840Mbps for each input channel |
|
|
Mux |
Input Channel |
256 IP streams - Version I 1024 IP streams - Version II |
|
Output Channel |
8 (or 16/20/24/28/32) |
|
|
Max PIDs |
256 per channel |
|
|
Functions |
PID remapping(auto/manually optional) |
|
|
PCR accurate adjusting |
||
|
PSI/SI table automatically generating |
||
|
Modulation Parameters |
Output Channel |
8 non-adjacent carriers output - Version I 16/20/24/28/32 non-adjacent carriers output - Version II |
|
Modulation Standard |
ETSI EN300 744 |
|
|
Constellation |
QPSK/16QAM/64QAM |
|
|
Bandwidth |
6/7/8 MHz |
|
|
Trans mode |
2K/4K/8K |
|
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
|
|
RF Output |
Interface |
1 F type port, 75Ω impedance - Version I 2 F type ports (contents mirrored out, fixed frequency offset), 75Ω impedance - Version II |
|
RF Range |
50~960MHz, 1kHz stepping |
|
|
Output Level |
-20~+10dbm (for all carriers), 0.5db stepping |
|
|
MER |
≥ 40dB |
|
|
ACL |
-55 dBc |
|
|
TS output |
8 (or 16/20/24/28/32) IP output over UDP/RTP/RTSP, unicast/multicast, 2 100/1000M Ethernet Ports |
|
|
System |
Web-based Network management |
|
|
General |
Dimension |
420mm×440mm×44.5mm (WxLxH) |
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|
|
Power Supply |
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
|
Order Guide:
|
|
Version I
|
Version II |
||||
|
16ch model |
20ch model |
24ch model |
28ch model |
32ch model |
||
|
256 IP input, 8ch DVB-T carriers out, 8 IP out |
x |
|
|
|
|
|
|
1024 IP input, 16ch DVB-T carriers out, 16 IP out |
|
x |
|
|
|
|
|
1024 IP input, 20ch DVB-T carriers out, 20 IP out |
|
|
x |
|
|
|
|
1024 IP input, 24ch DVB-T carriers out, 24 IP out |
|
|
|
x |
|
|
|
1024 IP input, 28ch DVB-T carriers out, 28 IP out |
|
|
|
|
x |
|
|
1024 IP input, 32ch DVB-T carriers out, 32 IP out |
|
|
|
|
|
x |
