Outline
NDS3922A is a professional audio decoding device with powerful functions. It supports 1 tuner input for DVB-CDVB-TDVB-T2ISDB-T(switchable) or DVB-S/S2/S2X demodulation, 2 ASI inputs and 2 IP inputs. And it supports decoding the analog balanced audio (XLR interfaces) and AES/EBU digital audio (XLR interfaces), 2 SPTS outputs over UDP/RTP. Its high compatibility and excellent decoding quality makes this device widely used in the digital broadcasting system.
Features
* 2 audio decoding
* 1 tuner input (DVB-CDVB-TDVB-T2ISDB-T switchable or DVB-S/S2/S2X optional)
* 2 ASI inputs and 2 UDP/RTP IP inputs via unicast or multicast
* MPEG1 Layer2, DRA and more decoding
* Analog balanced audio out (XLR interfaces) and AES/EBU digital audio out (XLR interfaces)
* Support left, right, stereo sound track output
* Adjustable Audio Gain: -24~+12dB
* 2 SPTS output over UDP/RTP protocol (unicast/multicast)
* LCD / keyboard, Web GUI management
* Dual power supply(hot-plugging) and Single power supply are optional

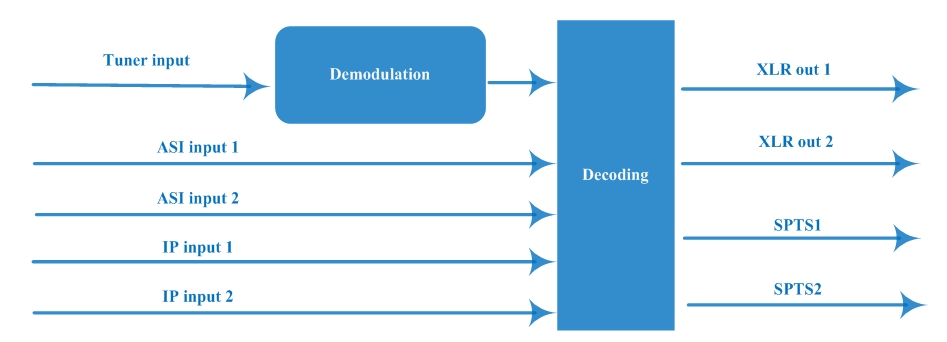

Principle Chart
Specifications
|
Input |
1 Tuner input for option, F type, (DVB-C/T/T2/ISDB-T switchable or DVB-S/S2/S2X optional as per order) 2 ASI inputs, BNC interface 2 IP inputs (UDP/RTP) via 2 100/1000M self-adaptive RJ45 ports |
|||||
|
Tuner Section |
Multi-mode tuners switchable |
Cable |
Input Frequency |
60~890 MHz |
||
|
Standard |
DVB-C/J.83A, J.83C |
J.83B |
||||
|
Constellation |
16/32/64/128/256 QAM |
64/256 QAM |
||||
|
Symbol rate |
1.0~7.0Msps |
|
||||
|
DVB-T |
Input Frequency |
60~890 MHz |
||||
|
Constellation |
QPSK, 16QAM, 64QAM |
|||||
|
Bandwidth |
6/7/8 M |
|||||
|
DVB-T2 |
Input Frequency |
60~890 MHz |
||||
|
Constellation |
QPSK, 16QAM, 64QAM, 256QAM |
|||||
|
Bandwidth |
5/ 6/7/8 M |
|||||
|
ISDB-T |
Input Frequency |
60~890 MHz |
||||
|
Constellation |
DQPSK, QPSK, 16QAM, 64QAM |
|||||
|
Satellite |
DVB-S |
Input Frequency |
950~2150MHz |
|||
|
Symbol rate |
0.5~45Msps |
|||||
|
Signal Strength |
- 65- -25dBm |
|||||
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
|||||
|
Constellation |
QPSK |
|||||
|
DVB-S2 |
Input Frequency |
950~2150MHz |
||||
|
Symbol rate |
QPSK/8PSK/16APSK:0.5~45Msps 32APSK: 0.5~40Msps; |
|||||
|
FEC |
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 |
|||||
|
Constellation |
QPSK, 8PSK, 16APSK, 32APSK |
|||||
|
DVB-S2X |
Input Frequency |
950~2150MHz |
||||
|
Symbol rate |
QPSK/8PSK/16APSK:0.5~45Msps 8APSK/32APSK: 0.5~40Msps |
|||||
|
FEC |
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9 |
|||||
|
Constellation |
QPSK, 8PSK, 8APSK, 16APSK, 32APSK |
|||||
|
Decoding |
Audio Format |
MPEG1 Layer2, DRA and more |
||||
|
Sample Rate |
48KHz, 44.1KHz |
|||||
|
Output |
2 analog balanced audio out (XLR interfaces) 2 AES/EBU digital audio out (XLR interfaces) |
|||||
|
2 SPTS output over UDP/RTP, unicast / multicast (for 2 decoded audio programs respectively), 2*100/1000M self-adaptive rj45 interfaces |
||||||
|
System |
Local interface |
LCD + control buttons |
||||
|
Remote management |
Web-server Management |
|||||
|
Language |
English |
|||||
|
Upgrade |
web management |
|||||
|
Miscellaneous |
Dimension |
482*350*44mm(W×L×H) |
||||
|
Approx weight |
3.2kg |
|||||
|
Environment |
0~45℃(work)；-20~80℃（Storage） |
|||||
|
Power requirements |
AC 110V±10%,50/60Hz AC 220V±10%,50/60Hz |
|||||
|
Power consumption |
<20W |
|||||
