Product Overview

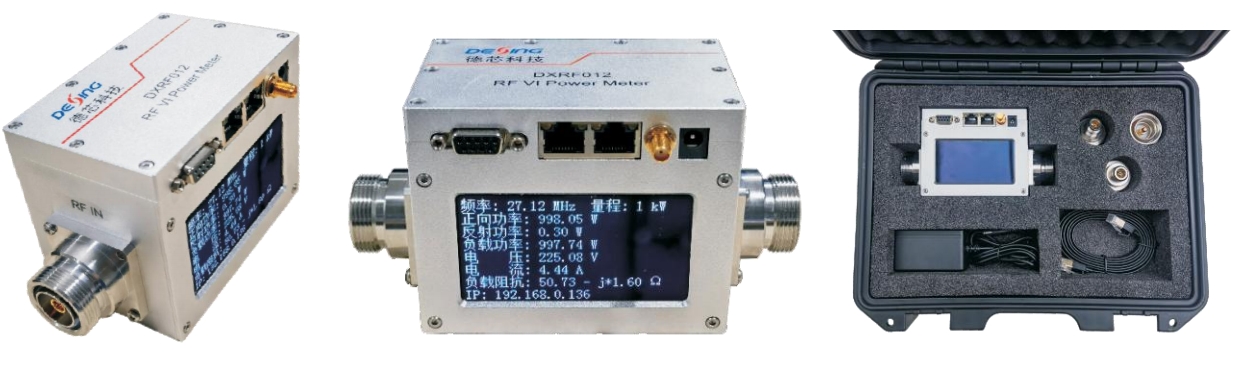

DXRF012 RF VI power meter is an advanced instrument for real-time monitoring of parameters such as voltage, current, power, reflection, and impedance of RF Power Generator. With high accuracy and multiple functions, It can be used for testing RF Power Generator, Matching Box, and plasma related devices.

Product Features

• Support measurement of 13.56 MHz, 27.12 MHz, and 40.68 MHz RF
• Support measurement of high-power RF up to 12kW
• Accurate measure for loads of 50Ω and non-50Ω with high-precision calibration
• Real time display curves of forward power, reflected power, voltage, current, load impedance and etc
• Sampling period ranges from 20 us to 1s for real-time mode
• Minimum sampling period can reach 1 us for high-speed mode, and the details of changes in pulse signals and arc discharge signals can be observed
• Real time display of impedance and trajectories on Smith charts, Rivals the Accuracy of offline vector network analyzer
• Equipped with Ethernet interface and R485 interface for easy system integration

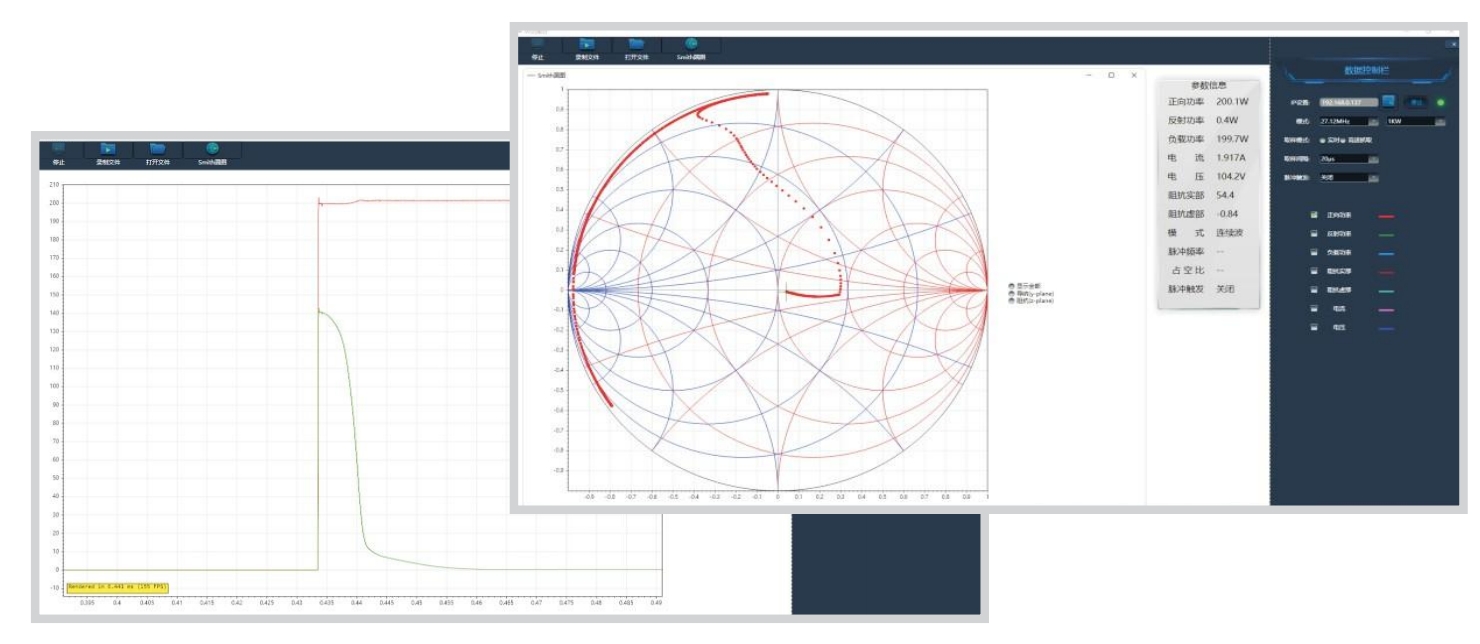

Monitoring software

Tech Parameters
