Outline
NDS3348C V2 is a high performance and cost-effective DVB-C modulator designed by Dexin. It has 8 tuner inputs, after multiplexing, scrambling and modulating process, then it gives 4 DVB-C non-adjacent carriers output. To meet customers’ various requirements, this device is also equipped with 128 IP input and 4 MPTS output over UDP and RTP. Its pluggable structure design greatly facilitates the change of modules as needed. Moreover, it has 4 CAM/CI slots to descramble the programs from the 4 tuner inputs in the 2 CI-Tuner Modules.
NDS3348C V2 can be upgraded and controlled through network system, which allows it to be widely used in setting up digital broadcasting network and very adaptable to newly generation CATV broadcasting system.
Key Features

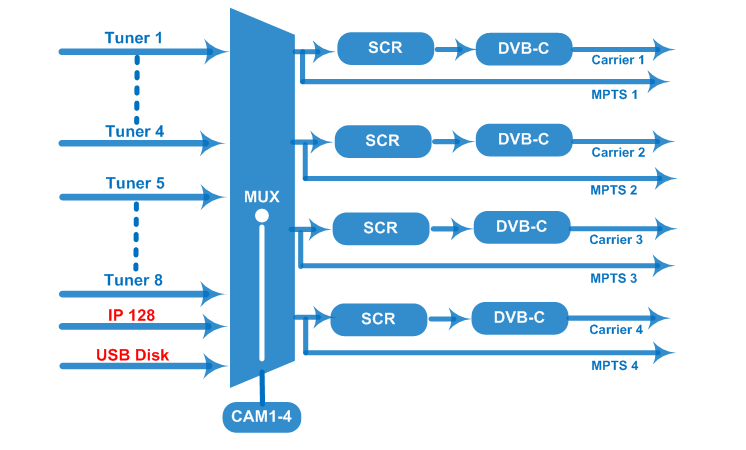

Principle Chart
Specifications
Input |
4 Tuner (DVB-C/T/(T)/S/S2/S2X/ISDBT optional) + 4 Tuner with CAM (DVB-C/T/(T)/S/S2/S2X/ATSC/ISDBT optional) 128 IP(SPTS/MPTS) input over UDP and RTP, RJ45, 1000M/100M , Unicast/Multicast 1 TS Playing via USB Disk |
||||||||
Tuner Section |
Multi-mode tuners switchable (New) |
DVB-C |
Input Frequency |
60~890 MHz |
|||||
Standard |
J.83A, J.83C |
J.83B |
|||||||
Constellation |
16/32/64/128/256 QAM |
64/256 QAM |
|||||||
DVB-T/(T) |
Input Frequency |
60~890 MHz |
|||||||
Bandwidth |
6/7/8 M |
||||||||
ISDB-T |
Input Frequency |
60~890 MHz |
|||||||
Version 1 |
DVB-S |
Input Frequency |
950-2150MHz |
||||||
Symbol rate |
0.5~45Msps |
||||||||
Signal Strength |
-65~-25dBm |
||||||||
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
||||||||
DVB-S2 |
Input Frequency |
950 ~2150MHz |
|||||||
Symbol rate |
QPSK: 1~45 Msps; 8PSK: 0.5~45 Msps |
||||||||
FEC |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
||||||||
Constellation |
QPSK, 8PSK |
||||||||
Version 2 (New) |
DVB-S |
Input Frequency |
950 ~2150MHz |
||||||
Symbol rate |
0.5~45Msps |
||||||||
Signal Strength |
- 65- -25dBm |
||||||||
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
||||||||
Constellation |
QPSK |
||||||||
Max input bitrate |
≤129Mbps |
||||||||
DVB-S2 |
Input Frequency |
950 ~2150MHz |
|||||||
Symbol rate |
QPSK/8PSK /16APSK :0.5~45 Msps 32APSK: 0.5~40Msps; |
||||||||
FEC |
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 |
||||||||
Constellation |
QPSK, 8PSK, 16APSK, 32APSK |
||||||||
Max input bitrate |
≤129 Mbps |
||||||||
DVB-S2X |
Input Frequency |
950 ~2150MHz |
|||||||
Symbol rate |
QPSK/8PSK /16APSK :0.5~45 Msps 8APSK/32APSK: 0.5~40Msps |
||||||||
FEC |
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9 |
||||||||
Constellation |
QPSK, 8PSK, 8APSK, 16APSK, 32APSK |
||||||||
Max input bitrate |
≤129 Mbps |
||||||||
|
ATSC-T |
Input Frequency |
54~858MHz |
||||||
Bandwidth |
6M |
||||||||
Constellation |
8VSB |
||||||||
Descrambling |
CAM/CI |
4 sets |
|||||||
BISS Descrambling |
Mode 1, Mode E (descramble individual program) |
||||||||
Multiplexing |
Maximum PID Remapping |
256 per input channel |
|||||||
Function |
A/V PID filtering |
||||||||
PID Remapping |
|||||||||
Accurate PCR adjusting |
|||||||||
Generate PSI/SI table automatically |
|||||||||
Scrambling |
Maximum simulcrypt CA |
4 |
|||||||
Standard |
ETR289, ETSI 101 197, ETSI 103 197 |
||||||||
Connection |
Local/remote connection |
||||||||
Modulation |
DVB-C |
Standard |
J.83A (DVB-C), J.83B, |
||||||
MER |
≥43dB |
||||||||
RF frequency |
50~960MHz, 1KHz step |
||||||||
RF output level |
-25~ -1dbm(83~107 dbµV), 0.1db step |
||||||||
Symbol rate |
5.000~7.000Msps adjustable |
||||||||
RF Out |
4*DVB-C non-adjacent carriers combined output, 40M total bandwidth limitation |
||||||||
Constellation |
J.83A |
J.83B |
|||||||
16/32/64/128/256QAM |
64/256 QAM |
||||||||
Bandwidth |
8M |
6M |
|||||||
Stream out |
4*MPTS over UDP and RTP out (RJ45, 1000M/100M Unicast/Multicast) |
||||||||
System |
web-based NMS support |
||||||||
Ethernet software upgrading |
|||||||||
General |
Dimension |
482mm×300mm×44.5mm (W*D*H) |
|||||||
Temperature |
0~45℃(Operation) ; -20~80℃(Storage) |
||||||||
Power |
AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ |
